ATA Coding SGO-2-CB-9v3 Control Board

SETTING TRANSMITTERS CODES TO RECEIVER

The Remote Transmitters can be programmed into the gates receiver to do two functions. Firstly the full Open/Stop/Close, and secondly the partly open gate for Pedestrian only access. The memory in the receiver can store up to 111 different remote control transmitters.

  • Make sure to install the battery to the Transmitters

STORING THE TRANSMITTERS CODE FOR O/S/C

ATA Coding SGO-2-CB-9v3 Control Board

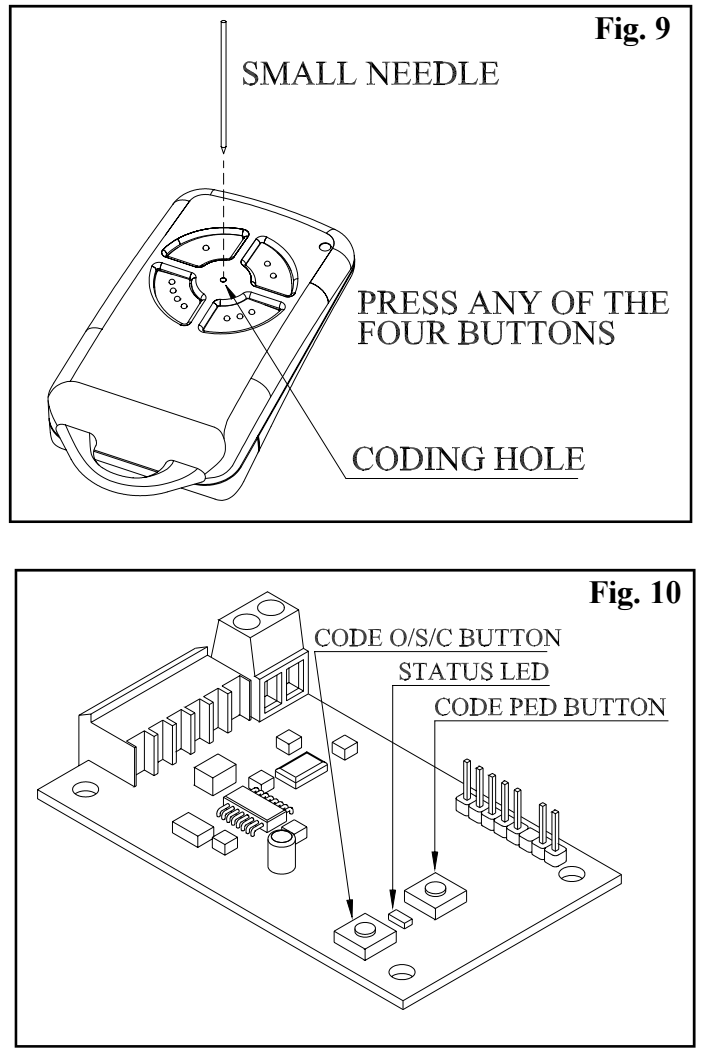

1. Press and hold the Code O/S/C button on the receiver (Fig 10).

2. Press the button (one of four) on the Transmitter you would like to use to control the gate for approximately two seconds. Pause for two seconds. Press the same button again on the Transmitter for approximately two seconds (Fig 9).

3. Release the Code O/S/C button (Fig 10).

4. Press the Transmitter button to see if it operates the gate. If you wish you can code in all four buttons on the Transmitter so all four can operate the same gate.

STORING THE TRANSMITTERS CODE FOR PEDESTRIAN ONLY ACCESS

1. Press and hold the Code PED button on the receiver Fig 10.

2. Press the button (one of four) on the Transmitter you would like to use to control the pedestrian access for approximately two seconds. Pause for two seconds. Press the same button again on the Transmitter for approximately two seconds.

3. Release the Code PED button (Fig 10).

4. Press the Transmitter button to see if it operates the gate.

IMPORTANT NOTE: The Pedestrian Access Cycle Time Page 14 button [30], must be set to complete setting this feature.

STORING ADDITIONAL TRANSMITTER (S) FROM A REMOTE LOCATION

Using this method you don’t need to have access to the control box or receiver. However, you do need a transmitter that is pre coded to the controller’s receiver.

IMPORTANT NOTE: The gate must be activated when the step below is preformed. The moving gate is to confirm from a remote location that the correct button was pressed and the transmitter is in range of the opener of a pre coded Transmitter.

1. Take any pre coded Transmitter. Press the button for the function you require until the gate is activated and release.

2. Then using a small needle press and hold firmly for 2 seconds through the Coding Hole (Fig 9).

3. Within 10 seconds take the additional transmitter you wish to code and Press the button (one of four) on the Transmitter you would like to use to control the gate for approximately two seconds. Pause for two seconds. Press the same button again on the Transmitter for approximately two seconds.

DELETING TRANSMITTER CODES

TO DELETE ONE TRANSMITTER

1. Press and hold the Code O/S/C button (pressing the PED code button will only delete the PED function for that transmitter) on the receiver [20]

2. Press the button (one of four) on the Transmitter you would like to delete from the receiver for approximately two seconds. Pause for two seconds. Press the same button again on the Transmitter for approximately two seconds.

3. Release the Code O/S/C button.

4. Press the Transmitter button to see if it operates the gate.

TO DELETE ALL TRANSMITTERS

1. Turn off mains power at the switch (and if the battery backup is connected, remove the VAC shunt [17] and replace after step 2).

2. Press and hold the Code O/S/C button on the receiver Fig 10 while turning on the mains power, continue to hold the Code O/S/C button for a further ten seconds.

3. Press the Transmitter button to see if it operates the gate. No transmitter should operate the gate.
