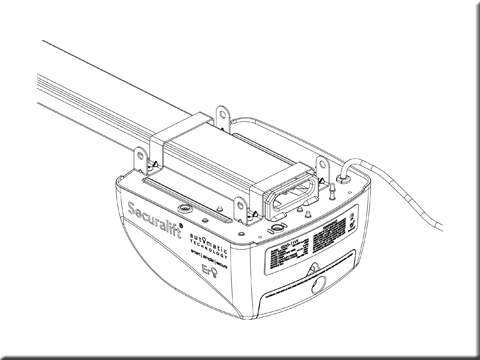

ATA GDO 11v1 Home Owners Manual
Features
Warranty
Two (2) year/5,000 cycles full parts and labour warranty on motor, electronics and mechanical components of the opener when installed by an Automatic Technology Dealer.
TrioCodeTM128 Technology
Only transmitters with the TrioCodeTM128 Technology can operate with the latest GEN2 Openers, reducing the chance of interference from other radio frequency sources. TrioCodeTM128 transmitters have the ability to code into earlier model openers.
Code Hopping Technology
Every time a transmitter is used a new security code is generated from over 100 billion possible code combinations. This greatly enhances the security of the system and makes “code grabbing” a thing of the past!
Multi-Channel Transmitter
Multi-channel transmitters allow you to operate other devices such as an adjoining garage door or automated gate from the same handy unit.
S-ALPS (Semi Automatic Limits
Positioning System) The S-ALPS system does away with manual adjustment of the door’s limits position using mechanical parts, such as cams and microswitches.
ISS (intelligent safety obstruction system)
While the door is performing a close cycle, should it hit an obstacle or be restricted in some manner, it will automatically reverse. The amount of force the door should encounter before reversing is automatically adjusted by the doors control system during the initial installation of the automatic door opener. The door will also stop if restricted whilst opening. The Safety Obstruction Force should be checked monthly.
Manual Release
The manual release handle allows the door to be operated by hand in the event of a power failure.
Self Locking
There is no need to manually lock your garage door, as the opener ‘positively’ locks the door when closed.
Service Fault Indicator
Flashing LEDs on the control panel easily identify operational problems or service requirements.
Dynamic Door Profiling
Changing door characteristics are automatically compensated for and “learnt” with each operation of the door.
Safety Beam (optional)
The opener has an input to connect a Safety Beam for extra safety.
Vacation Mode
A transmitter can be programmed to disable the garage door opener radio receiver. This is ideal if the door is to be left idle for prolonged periods. (Refer to 8.2 for information)
Pet (Pedestrian) Mode
A transmitter can be programmed to open the door partially to allow pets access to the garage. The default PET Mode height can be adjusted to a desired position. (Refer to 7.4 for information). To code a transmitter button to operate PET mode refer to 8.4 for information.
Courtesy Light
The courtesy light comes on automatically for three minutes whenever the door is activated. The courtesy light automatically switches on for approximately three (3) minutes when operating the door. This can also be programmed to turn on and off from a transmitter. (Refer to 8.5 for information)
